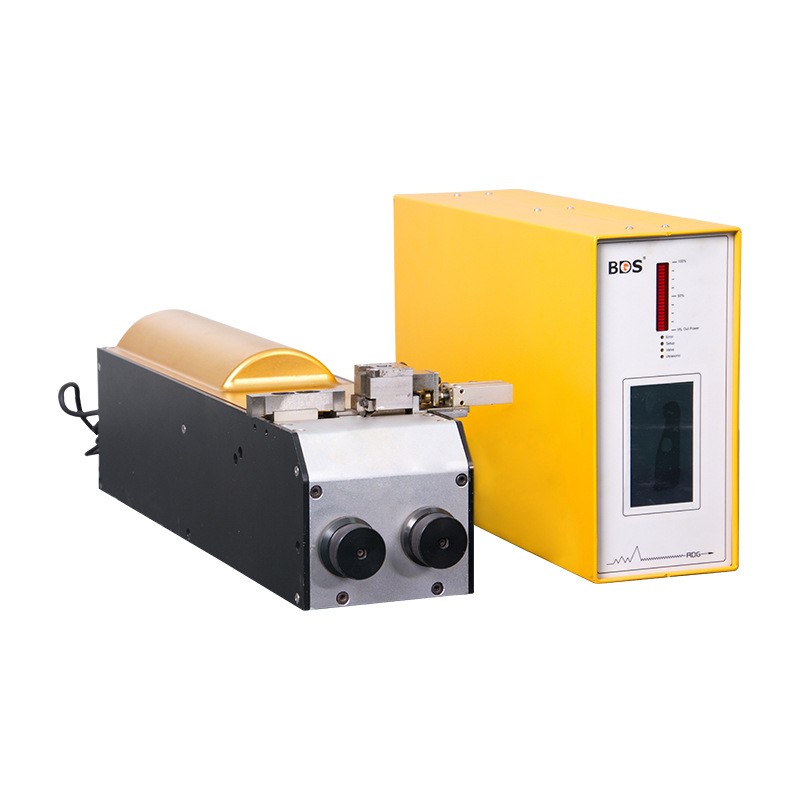

The BDS-ADG20-JX01 Ultrasonic Wire Splicer features a variety of ultrasonic power options for robust and energy-efficient wire harness welding in automotive and industrial applications.
Features:
4 ultrasonic power options available.
Automatic Frequency Tracking for optimal operation.
With a PLC control system to ensure precise and consistent welding.
Safety features include emergency stop and fault display functions.
Built-in “Ultrasonic Stop Mode ”for enhanced safety.
Specifications | ||||
Model | BDS-ADG20-JX01 | |||
Frequency | 20kHz | |||
Power Supply: | 190-265VAC | |||
Ultrasonic Power | 2000W | 3000W | 4000W | 6000W |
Time Setting | 0.001-9.99 seconds | |||
Display | Touchscreen | |||
Frequency Range | 20kHz | |||
Ultrasonic Stop Mode | Built-in | |||
Pressure Start | 4-200mA Time :0-9.99 seconds | |||
Emergency Stop | Displayed on the screen | |||
Fault Display | Displayed on the screen | |||
Control System | PLC | |||
Stroke | 20mm | |||
Time Control Mode | 0.001-9.99 seconds | |||
WeldingTime | Adjustable from 0.05 to 1 second | |||
Welding Capacity | Copper >0.5-25mm, Aluminum >0.5+0.5mm | |||
Operating Temperature | -10°C-40°C | |||
Generator Dimensions | 420×120×270（l×w×h mm） | |||
Machine Dimensions | 600×180×160（l×w×h mm) | |||
Machine N.W | 35kg | |||
Generator N.W | 13kg | |||
