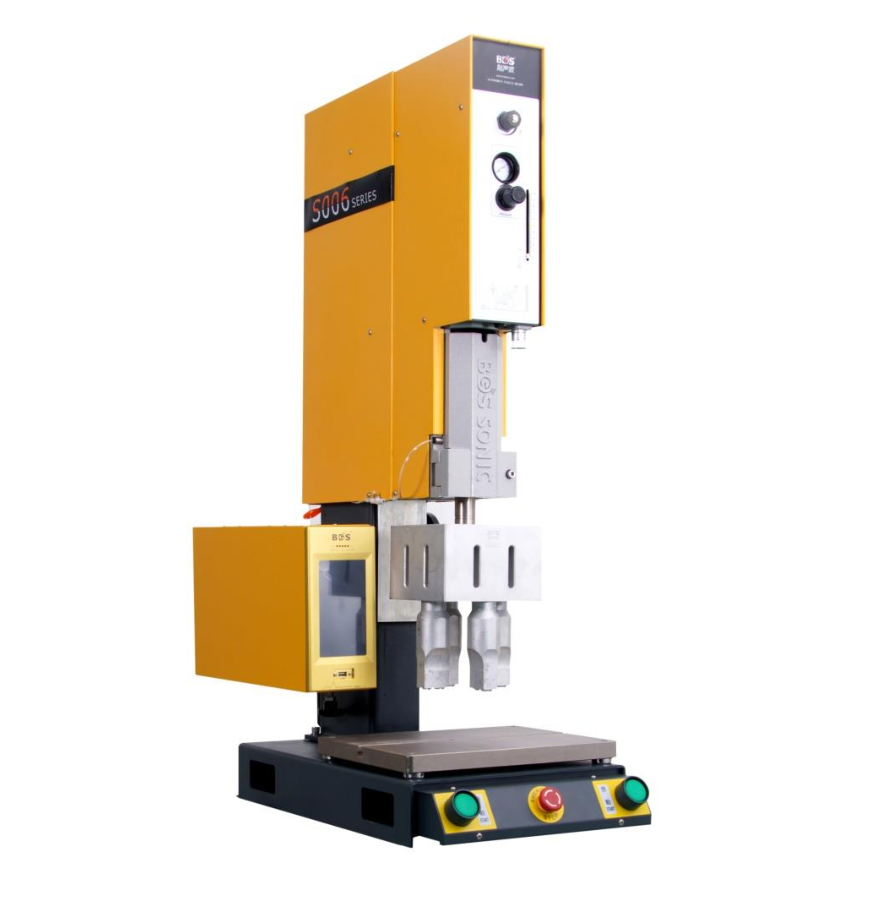

ADGI-S006 is an upgraded version of the original ADG-S006 product, adding three protection functions and fault alarm functions to ensure equipment safety and improve welding quality，meanwhile upgrading the LCD display to a 7-inch color large screen, making the operation more intuitive and convenient.
Features:
l3 protection functions:
①Over-current protection②Frequency deviation protection③Over-output power protection
lFault notification function to helps technicians quickly identify and troubleshoot faults.
l5 welding modes for variety applications: ① Time ② Energy ③ Power ④ Absolute depth ⑤Relative depth .
l3 trigger modes for precise control:
① Time②Pressure③Depth .
lPassword protection to prevent unauthorized use.
lAutomatic frequency tracking to ensure optimal welding results.
lFree amplitude adjustment to meet different application needs.
Note:The operating temperature for the machine is required to be between 10°C and 40°C.
Specifications | ||
Model | ADGI- S006 | |
Input Voltage | 190-240VAC | |
Frequency range | 35kHz | |
Ultrasonic Power | 2000W | 3000W |
Welding Capability | Φ170mm | Φ260mm |
Time Setting | 0.001-9.999 seconds | |
Energy Setting | 1J - 9999J | |
Pressure Setting | 1 kg – 220kg | |
Depth Setting | 0.001mm–100.000mm /80.000mm | |
Amplitude | 5~100μm | |
Stroke | 100mm | |
Worktable size | 500mm x 300mm | |
Welding records | Up to 1000 welding records can be stored and exported to a USB drive | |
Outside dimensions | 660×400×1100(mm)(L×W×H) | |
N.W | 110kg | |
